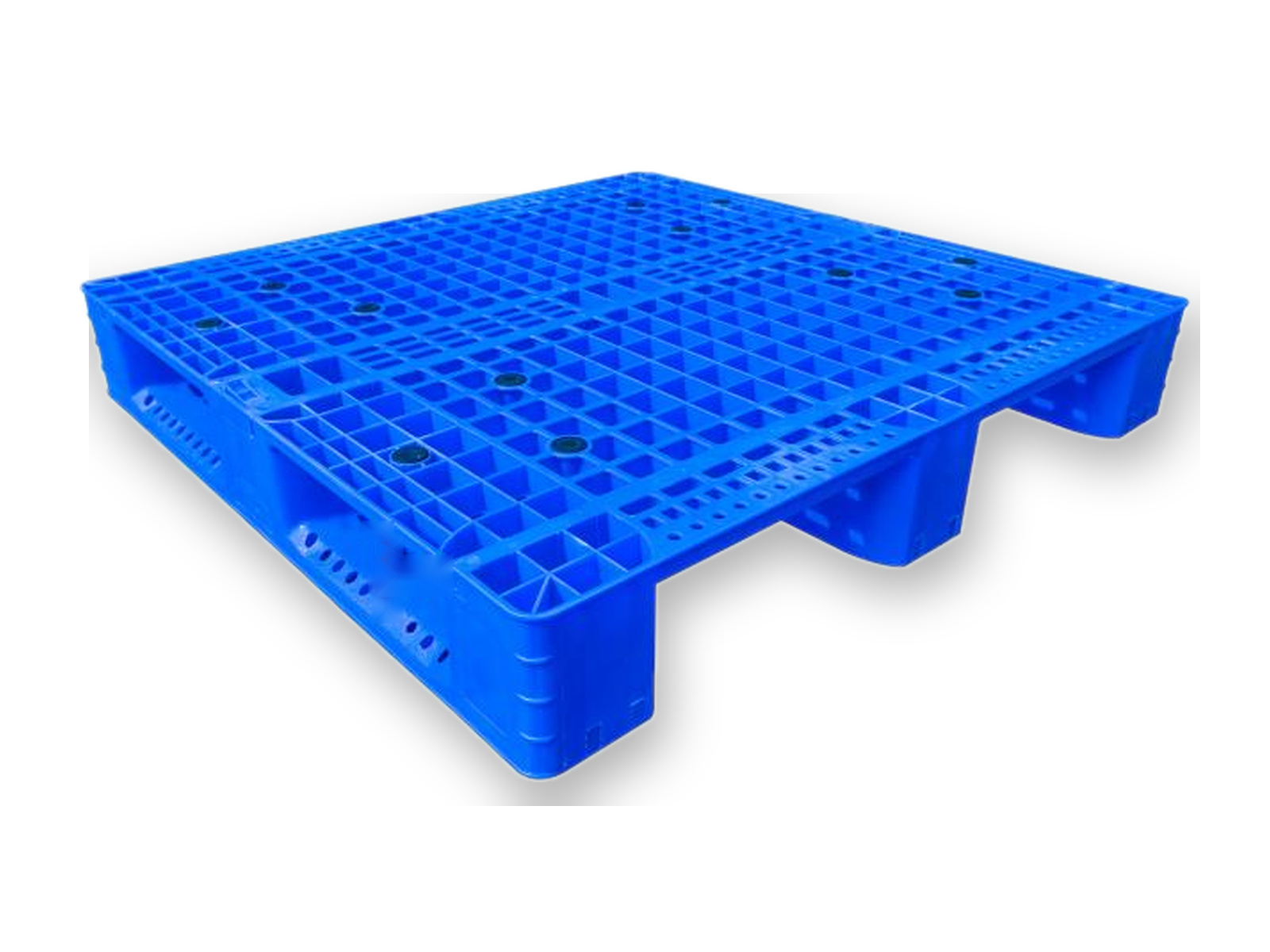

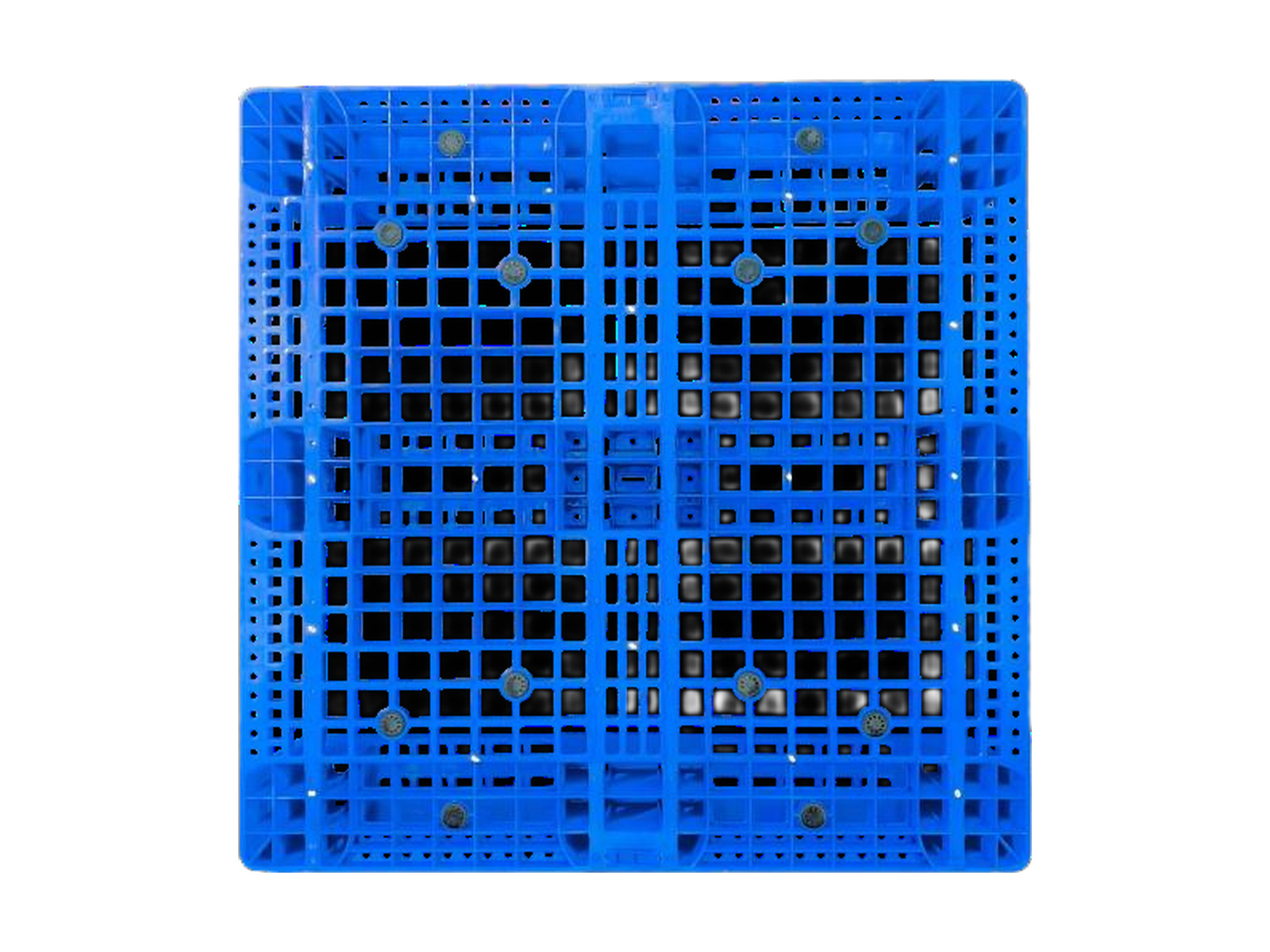

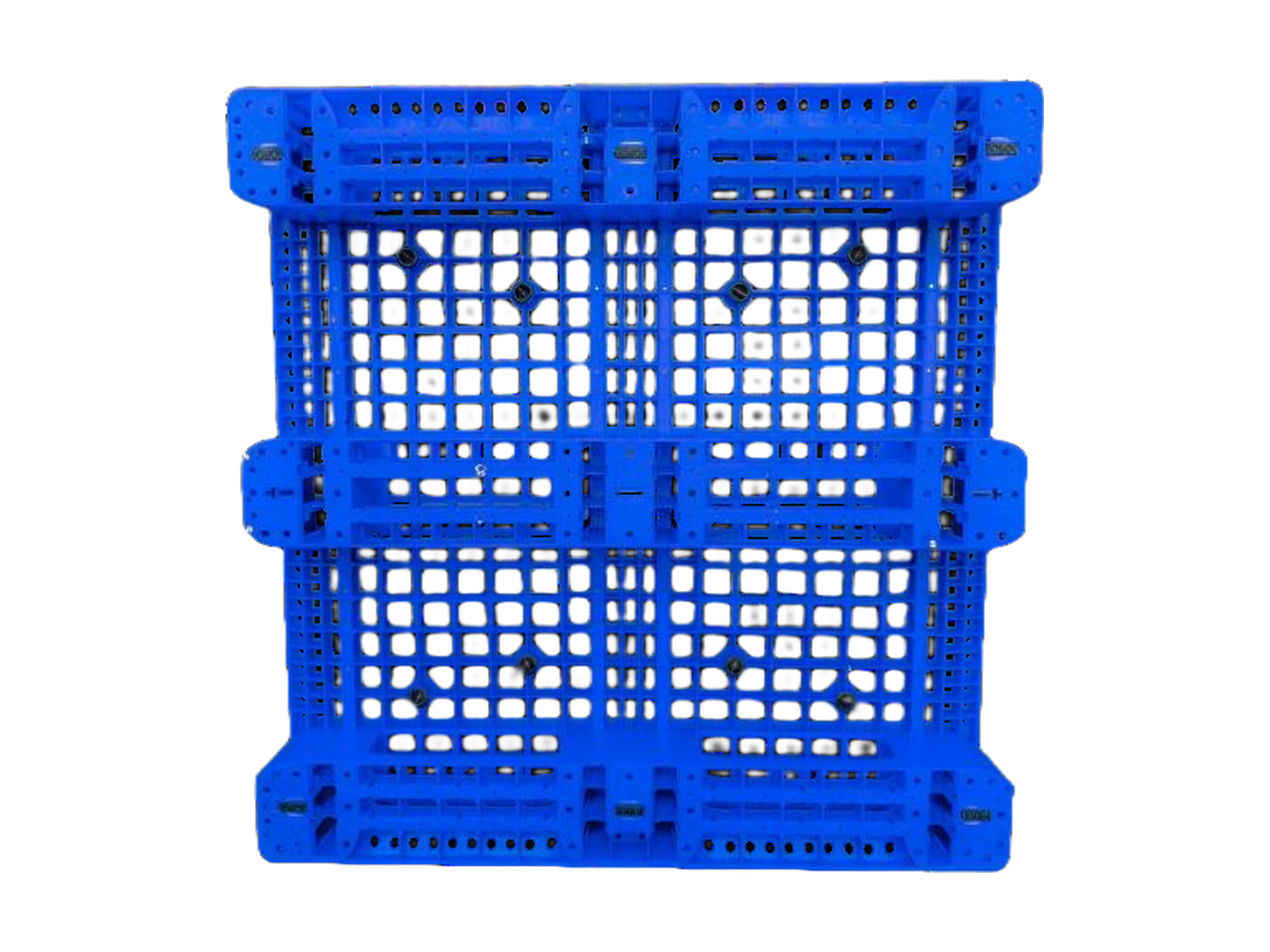

1050 Three-Runner Ventilated Grid Deck Pallet
Model: CHSY-1050
The Three-Runner Grid Deck Pallet CHSY-1050 is one-piece injection-moulded from impact-resistant HDPE. This 1050 × 1050 × 160 mm square pallet weighs 12 kg yet delivers 1.5 T dynamic, 5 T static and 1.5 T racking loads — heavyweight performance in a compact footprint. Four steel bars in the deck and six underneath, with three longitudinal runners, form a rigid frame for direct rack storage, ideal for chemicals, grain and oil, beverages and hardware in space-constrained high-bay facilities. The open grid ventilates, drains, washes and dries easily, suiting cold-chain and fresh-produce handling too. True four-way entry works with forklifts and hand pallet trucks in narrow aisles, and stacks are stable. With no fumigation or quarantine barriers to EU and North American markets, no nails or splinters, and strong resistance to moisture, rust and impact, plus nestable storage, long life and full recyclability, it is the space-efficient solution for heavy compact storage and container export.
Technical Specifications
Dimensions
Material
Static Load
Dynamic Load
Racking Load
Weight
Entry Type
Deck Surface
Temperature Range
Color
Certifications
1050 × 1050 × 160 mm
Impact-resistant HDPE
5000 kg
1500 kg
1500 kg
12 kg
Four-way entry (forklift & hand pallet truck)
Ventilated open grid deck, self-draining
-20°C to +50°C (short-term up to +60°C)
Blue
